型號及參數
Model and specifications

QK1313

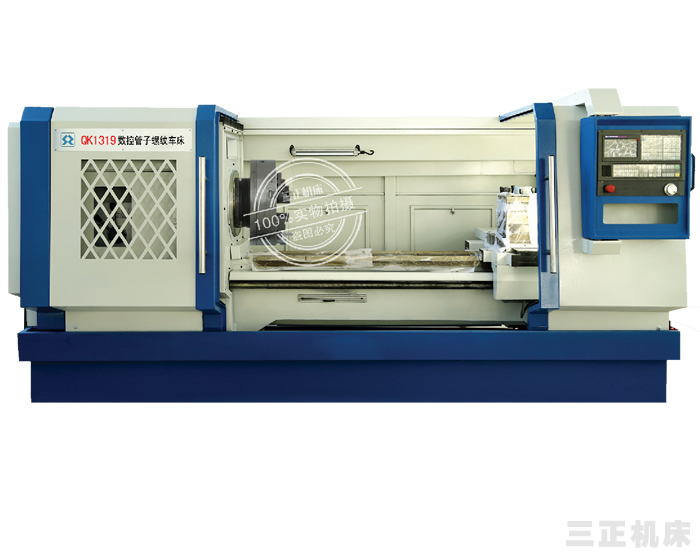

QK1319

QK1322

QK1327

QK1335

QK1343

床身導軌寬度
Guideway width

550 mm

755mm

床身上***大工件回轉直徑
Max.swing over bed

630mm

1000mm

刀架上回轉直徑
Max.swing over carriage

350mm

610mm

主軸內孔直徑
Hole through spindle

130 mm

200 mm

225mm

280mm

350mm

440mm

***大加工管子外徑
Max.processing Pipe diameter

126 mm

196 mm

219mm

270mm

340mm

430mm

***大加工長度
Max.workpiece length

1500mm/3000mm

主軸轉速范圍r/min
Range of spindle speed changes

16～820

36～450

36～450

7.7～230

6～330

4～230

刀架工位數
Tool post style

立式4工位（標配）

刀架轉位時間(S)
Knife rest translocation time

3

重復定位精度
Repeated positioning accuracy

±0.002

加工工件精度
Processing workpiece precision

IT7

床身導軌淬火硬度
Bed quenching hardness

HRC52

主電機功率 Power of main motor

11kw

18.5kw

22kw

數控系統CNC

廣泰130IT/廣數980TA2
（可按客戶要求配置）

手動卡盤(前后) Chuck

Φ400三爪

Ф500三爪

Ф800四爪

Ф1000四爪
